Start a New Era of IoT Laundry
SPLANEY is the industry’s first manufacturer of laundry dosing systems using maintenance-free design, seamlessly integrating diaphragm pumps, quick-connect flush manifolds, corrosion-resistant springless valves, smart pressure-relief modules, and an IoT cloud platform to cut costs and boost efficiency.
Maintenance-free laundry series
Maintenance-Free Laundry Dosing
SPLANEY is the industry’s first manufacturer of laundry dosing systems using maintenance-free design, seamlessly integrating diaphragm pumps, quick-connect flush manifolds, corrosion-resistant springless valves, smart pressure-relief modules, and an IoT cloud platform to cut costs and boost efficiency.
One-to-Multi Maintenance-Free Series
JCMWH-7B IoT Compact (Type C) Maintenance-Free Laundry Chemicals Dispenser
NEWSPAPERS
Scope of Application
The JCMWH-7B series is the compact version, equipped with seven medium-flow MWH-15 series maintenance-free diaphragm pumps (up to eight), capable of handling dosing needs for up to 8 medium-sized washing machines. It is ideal for industrial or commercial laundries with limited space and medium daily output.
Hardware Features
-
Compact size and high modularity for easy installation even in tight in-house laundry spaces.
-
Equipped with a standard-size motor, ideal for medium-dosing needs in industrial or commercial laundries.
-
Standard with a patented quick-connect flushing manifold design, eliminating inaccuracies caused by dripping.
-
Features a patented corrosion-resistant pneumatic valve, with no metal in the channel, and a diaphragm life of up to 5 years.
-
Equipped with a patented smart pressure relief system that detects blockages, relieves pressure to reduce risk, and triggers an alarm.
-
Equipped with a spring-free magnetic integrated delay flushing and inflation system, allowing for fast feeding speed with no risk of backflow.
Software Features
-
Supports cross-platform access to the SPLANEY smart IoT system, along with up to 100 digital washing reports for comprehensive operational analysis.
-
Supports up to 27 programmable formulations and introduces a formulation group function, allowing for free adaptation to different weight washing machines.
-
Optional 10-inch high-resolution LCD color touchscreen, providing clear status monitoring and parameter settings.
-
Compatible with an IoT remote pH monitoring system and ozone washing equipment to enhance washing efficiency.
-
Certified by ISO, CE, SGS, and awarded over 10 national patents.
Pump Features

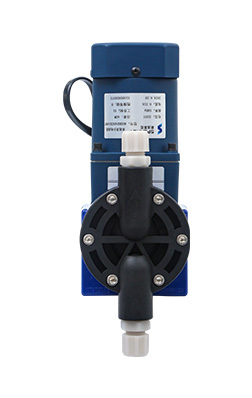

 MWH-15 Maintenance-free Diaphragm Pump（Medium-flow）
|
Data Visualization
HD Color Touch Display
loT Remote Monitoring
7-inch visual HD color touchscreen
After years of software development and optimization, SPLANEY launched the HD color touchscreen system, integrating status monitoring, program editing, data summary, and parameter settings, providing users with complete visual production/status analysis for intelligent laundry management.
-
Real-time monitoring of chemical, water, ozone usage, and tracking of each washing machine’s program steps, counts, and operating status.
-
Visual setup of formula details including chemical dosage, unit price, and chemical names.
-
Smart fault detection with on-screen alerts and maintenance suggestions.
SPLANEY smart IoT system (optional)
With SPLANEY IoT system’s high-speed interaction, users can remotely monitor system status and data, dynamically manage energy consumption via visualized historical charts, greatly reducing on-site maintenance and improving efficiency.
-
Wash count/weight and step count
-
Chemical and water usage/cost
-
Linen category ratio and rewash ratio
-
Formula count/cost and proportion
-
Total washing time, heating time
-
Liquid Level, water volume and system pressure
-
PH/temperature/ozone time (optional)
信息为测试元素，使用时候可删除该元素放置自己想放的元素
这里是标题一h1占位文字
信息为测试元素，使用时候可删除该元素放置自己想放的元素
信息为测试元素，使用时候可删除该元素放置自己想放的元素
这里是占位文字
信息为测试元素，使用时候可删除该元素放置自己想放的元素
Accessories
WLA-800 smart low-level alarm system
The WLA-800 is an advanced chemical level monitoring device that alerts staff immediately with a buzzer or flashing light when chemicals are running low, ensuring uninterrupted workflow and improving efficiency and safety.
- Audio-visual warning system alerts low level and low battery in time to prevent unexpected failures
- Compatible with multi-band wireless mode, supports monitoring of up to 8 probes simultaneously for diverse applications
- Acid- and alkali-resistant casing and piping design ensures long-term stability
- Optional sensors available for remote monitoring of chemical usage
XLG-20 corrosion-resistant suction lance
The XLG-20 series corrosion-resistant suction lance is specially designed for chemical suction, featuring a built-in corrosion-resistant check valve and impurity filter to effectively prevent backflow and leakage, ensuring stable operation. Suitable for various conditions, it offers excellent corrosion resistance and safety.
-
Suction lance equipped with dedicated corrosion-resistant check valve and filter to prevent backflow and impurity intake
-
Made of highly corrosion-resistant materials, ensuring long-term stability and durability
-
Excellent airtightness, eliminating suction errors caused by leakage
XHH-50 series smart wide-voltage signal box
As the signal receiver for standard single-washer dispenser systems, the XHH-50 series signal box supports wide voltage input, seamlessly compatible with almost all washer control boards without the need to replace relays. It also features built-in short-circuit protection, ensuring long-term operational stability.
-
Supports DC/AC wide-voltage washer signal input, no need for relay replacement
-
Single Ethernet cable directly connects washer and dispenser, highly efficient installation
-
Built-in short-circuit protection ensures user safety
PFXZQ-120 series HD color formula selector
The formula selector allows users to manually choose washing programs via touchscreen or buttons. Unlike traditional systems, SPLANEY’s dispenser system can automatically match programming with standard single washers, giving users the option to use the formula selector freely.
-
Users can freely decide whether to use the formula selector
-
Manual chemical addition can be set via click to optimize washing results
-
Available in color LCD touchscreen and digital display versions
-
Formula information and washer number can be preset
Product Video
One-to-Multi Model A Maintenance-Free Laundry Chemicals Dispenser Demonstration
One-to-Multi Model D Mini Maintenance-Free Laundry Chemicals Dispenser
