SPLANEY is the industry’s first manufacturer of laundry dosing systems using maintenance-free design, seamlessly integrating diaphragm pumps, quick-connect flush manifolds, corrosion-resistant springless valves, smart pressure-relief modules, and an IoT cloud platform to cut costs and boost efficiency.

Maintenance-free laundry series

Maintenance-Free Laundry Dosing

SPLANEY is the industry’s first manufacturer of laundry dosing systems using maintenance-free design, seamlessly integrating diaphragm pumps, quick-connect flush manifolds, corrosion-resistant springless valves, smart pressure-relief modules, and an IoT cloud platform to cut costs and boost efficiency.

One-to-Multi Maintenance-Free Series

MWH-7B IoT Standard (Type A) Maintenance-Free Laundry Chemicals Dispenser

MWH-7B

1.8 L/min

MWH-7B(Tunnel） IoT Standard (Type A) Maintenance-Free Dispenser

MWH-7B(Tunnel）

1.8 L/min

CGMWH-7B IoT Regular （Type B）Maintenance-free Laundry Chemicals Dispenser

CGMWH-7B

1.6 L/min

JCMWH-7B IoT Compact (Type C) Maintenance-Free Laundry Chemicals Dispenser

JCMWH-7B

1.5 L/min

WXMWH-7B IoT Micro (Type D) Maintenance-Free Laundry Chemicals Dispenser

WXMWH-7B

1.4 L/min

undefined
undefined
undefined
undefined
undefined
+
  • undefined
  • undefined
  • undefined
  • undefined
  • undefined

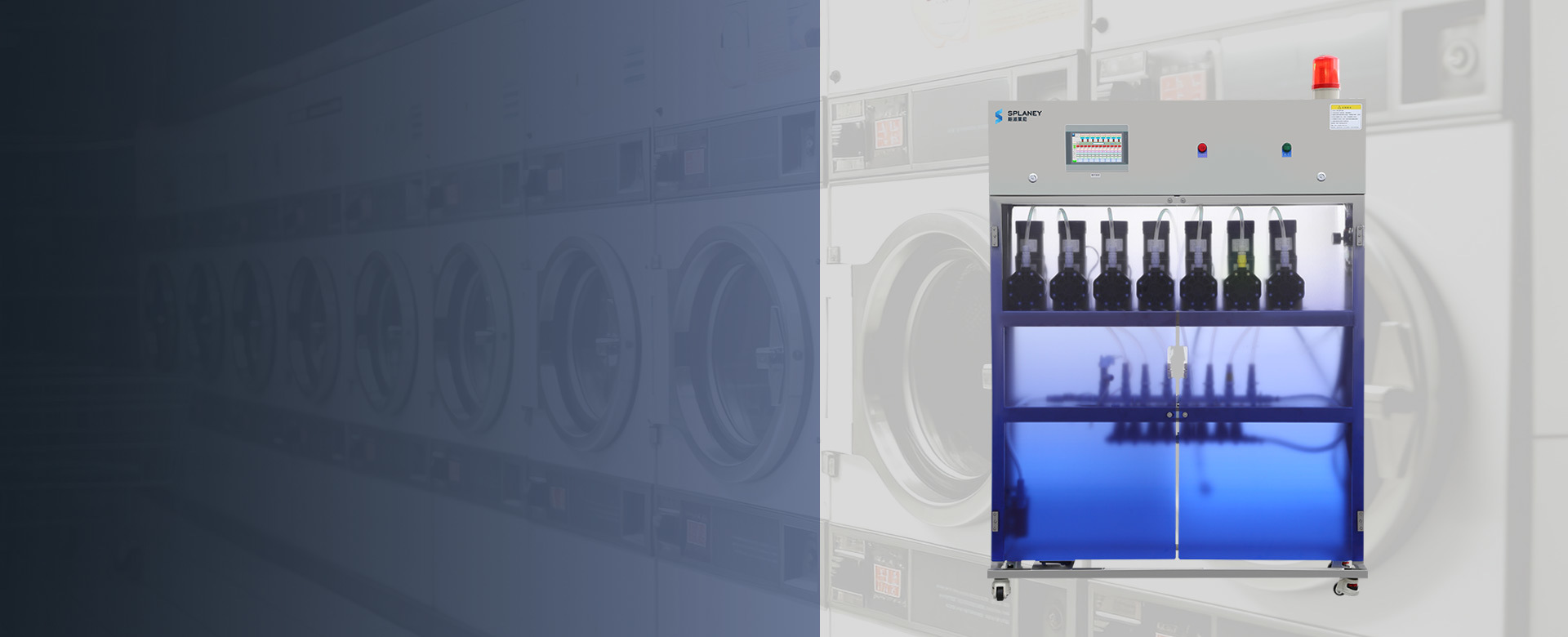

MWH-7B(Tunnel） IoT Standard (Type A) Maintenance-Free Dispenser

The MWH-7B Series Standard Type A maintenance-free laundry dispenser is SPLANEY’s masterpiece, proven by years of market validation. It features a patented maintenance-free diaphragm pump, specially designed for acidic and alkaline viscous chemicals, with pressure resistance up to 8 bar. This makes it ideal for long-distance and high-resistance material delivery, effectively solving issues like inaccurate dosing and high failure rates in traditional equipment.

In addition, the MWH-7B Series adopts technologies such as springless pneumatic valves, quick-connect flush manifolds, and smart pressure relief valves. It supports up to 12 washing machines and connects to SPLANEY’s IoT system, enabling real-time monitoring and remote management of the washing process, water, and chemicals, helping to reduce costs and increase efficiency

* Blue protective door is not standard.

Scope of Application

The MWH-7B Series is an all-round version, equipped with 7 high-flow MWH-18 series maintenance-free diaphragm pumps (up to 8), handling dosing needs for up to 12 large washing machines. It is especially suitable for industrial laundries with long delivery distances and high daily output.

Hardware Features

  • Equipped with patented high-pressure, high-flow maintenance-free diaphragm pump, designed for acidic and alkaline viscous chemicals

  • Standard with patented quick-connect flush manifold, preventing suction errors caused by leakage

  • Fitted with patented corrosion-resistant pneumatic valves, metal-free channels, diaphragm lifespan over 5 years

  • Features patented smart pressure relief system, auto-detects pipe blockages and alerts in time

  • Uses springless magnetic integrated delayed flush & air system, fast dosing with no backflow risk

Software Features

  • Cross-platform access to SPLANEY IoT system, with up to 100 digital laundry reports for full operational analysis

  • Supports up to 27 programmable formulas with formula grouping, freely adaptable to machines of different capacities

  • Optional 15-inch high-resolution LCD color touchscreen, clear status monitoring and parameter setting

  • Certified by ISO, CE, SGS, and awarded over 10 national patents

  • Compatible with IoT remote pH monitoring and ozone washing equipment to boost washing efficiency

Pump Features

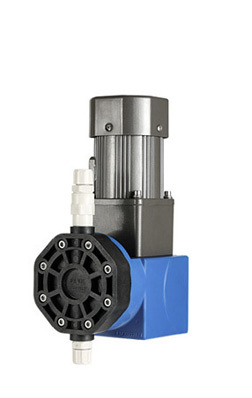

MWH-18 Maintenance-Free Diaphragm Pump

  • Adaptable： Industry's first patented maintenance-free diaphragm pump designed for high-viscosity acidic and alkaline chemicals
  • High Precision：Engineered for high accuracy, with an average error of <1% (certified by municipal metrology and quality inspection institute)
  • Durable：Made from imported corrosion-resistant composite materials, with an average diaphragm lifespan of up to 5 years
  • Pressure Resistance：Withstands up to 8 Bar pressure, ensuring lossless delivery in high-resistance, long-distance applications
  • Efficient/Convenient：Superior sealing capability, no need for water flushing or air purging after running empty (automatic feeding with machine assistance)

Data Visualization

图片名称

HD Color Touch Display

图片名称

loT Remote Monitoring

Accessory Features

7-inch visual HD color touchscreen

After years of software development and optimization, SPLANEY launched the HD color touchscreen system, integrating status monitoring, program editing, data summary, and parameter settings, providing users with complete visual production/status analysis for intelligent laundry management.

  • Real-time monitoring of chemical, water, ozone usage, and tracking of each washing machine’s program steps, counts, and operating status.

  • Visual setup of formula details including chemical dosage, unit price, and chemical names.

  • Smart fault detection with on-screen alerts and maintenance suggestions.

Accessory Features

SPLANEY smart IoT system (optional)

With SPLANEY IoT system’s high-speed interaction, users can remotely monitor system status and data, dynamically manage energy consumption via visualized historical charts, greatly reducing on-site maintenance and improving efficiency.

  • Wash count/weight and step count

  • Chemical and water usage/cost

  • Linen category ratio and rewash ratio

  • Formula count/cost and proportion

  • Total washing time, heating time

  • Liquid Level, water volume and system pressure

  • PH/temperature/ozone time (optional)

信息为测试元素，使用时候可删除该元素放置自己想放的元素

这里是标题一h1占位文字

信息为测试元素，使用时候可删除该元素放置自己想放的元素

信息为测试元素，使用时候可删除该元素放置自己想放的元素

这里是占位文字

信息为测试元素，使用时候可删除该元素放置自己想放的元素

Accessories

Accessory Features
Accessory Features
Accessory Features
Accessory Features
Accessory Features

WLA-800 smart low-level alarm system

The WLA-800 is an advanced chemical level monitoring device that alerts staff immediately with a buzzer or flashing light when chemicals are running low, ensuring uninterrupted workflow and improving efficiency and safety.

  • Audio-visual warning system alerts low level and low battery in time to prevent unexpected failures
  • Compatible with multi-band wireless mode, supports monitoring of up to 8 probes simultaneously for diverse applications
  • Acid- and alkali-resistant casing and piping design ensures long-term stability
  • Optional sensors available for remote monitoring of chemical usage
Accessory Features

XLG-20 corrosion-resistant suction lance

The XLG-20 series corrosion-resistant suction lance is specially designed for chemical suction, featuring a built-in corrosion-resistant check valve and impurity filter to effectively prevent backflow and leakage, ensuring stable operation. Suitable for various conditions, it offers excellent corrosion resistance and safety.

  • Suction lance equipped with dedicated corrosion-resistant check valve and filter to prevent backflow and impurity intake

  • Made of highly corrosion-resistant materials, ensuring long-term stability and durability

  • Excellent airtightness, eliminating suction errors caused by leakage

Accessory Features

XHH-50 series smart wide-voltage signal box

As the signal receiver for standard single-washer dispenser systems, the XHH-50 series signal box supports wide voltage input, seamlessly compatible with almost all washer control boards without the need to replace relays. It also features built-in short-circuit protection, ensuring long-term operational stability.

  • Supports DC/AC wide-voltage washer signal input, no need for relay replacement

  • Single Ethernet cable directly connects washer and dispenser, highly efficient installation

  • Built-in short-circuit protection ensures user safety

Accessory Features

PFXZQ-120 series HD color formula selector

The formula selector allows users to manually choose washing programs via touchscreen or buttons. Unlike traditional systems, SPLANEY’s dispenser system can automatically match programming with standard single washers, giving users the option to use the formula selector freely.

  • Users can freely decide whether to use the formula selector

  • Manual chemical addition can be set via click to optimize washing results

  • Available in color LCD touchscreen and digital display versions

  • Formula information and washer number can be preset

Product Video

Close

One-to-Multi Model A Maintenance-Free Laundry Chemicals Dispenser Demonstration

Close

One-to-Multi Model D Mini Maintenance-Free Laundry Chemicals Dispenser
