YDY-WQL-6B Modular Venturi Laundry Chemicals Dispenser For One Washing Machine
NEWSPAPERS
Scope of Application
The YDY-WQL-6B series is a Venturi dosing system designed for a single washing machine and can seamlessly handle up to eight different chemicals. Please note that the YDY-WQL-7B series requires a stable water-supply pressure (recommended ≥ 0.1 MPa) for optimal performance.
Hardware Features
-
The pump head is based on the Venturi effect, enabling chemicals to be metered and diluted precisely according to the programmed dosage.
-
With no pump-tube replacement and no wear parts required, the entire unit maintains extremely high reliability.
-
Comes standard with a patented maintenance-free magnetic integrated pump check-valve; the chemical channel contains no metal components, greatly extending service life.
-
The housing features a modular ABS engineering-plastic design and is available in 6-pump and 8-pump versions, ensuring zero contact between personnel and chemicals.
Software Features
-
Standard LCD color touchscreen provides one-touch access to status monitoring, program programming, alarms, and data summaries.
-
Optional SPLANEY remote IoT platform enables real-time wash-data monitoring and optimization of water and chemical consumption to lower operating costs.
-
Suports up to 27 programmable cycles with automatic, semi-automatic, and manual modes.
-
Holds ISO, CE, SGS certifications and more than 10 national patents.
-
Features a clean, minimalist design with the option to customize company logos to strengthen brand identity.
Pump Features
 WQL-22 Adaptive Venturi Pump
|
Data Visualization
HD Color Touch Display
loT Remote Monitoring

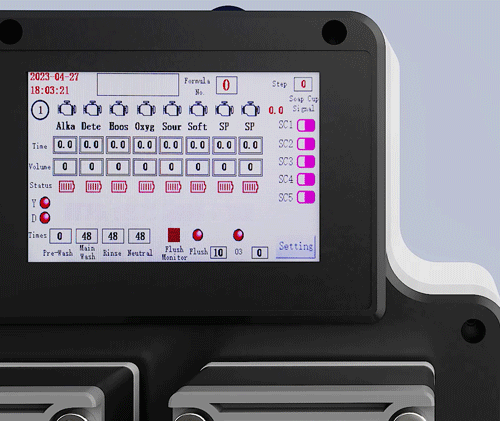

7-inch visual HD color touchscreen
After years of software development and optimization, SPLANEY launched the HD color touchscreen system, integrating status monitoring, program editing, data summary, and parameter settings, providing users with complete visual production/status analysis for intelligent laundry management.
-
Real-time monitoring of chemical, water, ozone usage, and tracking of each washing machine’s program steps, counts, and operating status.
-
Visual setup of formula details including chemical dosage, unit price, and chemical names.
-
Smart fault detection with on-screen alerts and maintenance suggestions.
SPLANEY smart IoT system (optional)
With SPLANEY IoT system’s high-speed interaction, users can remotely monitor system status and data, dynamically manage energy consumption via visualized historical charts, greatly reducing on-site maintenance and improving efficiency.
-
Wash count/weight and step count
-
Chemical and water usage/cost
-
Linen category ratio and rewash ratio
-
Formula count/cost and proportion
-
Total washing time, heating time
-
Liquid Level, water volume and system pressure
-
PH/temperature/ozone time (optional)
信息为测试元素，使用时候可删除该元素放置自己想放的元素
这里是标题一h1占位文字
信息为测试元素，使用时候可删除该元素放置自己想放的元素
信息为测试元素，使用时候可删除该元素放置自己想放的元素
这里是占位文字
信息为测试元素，使用时候可删除该元素放置自己想放的元素
Accessories
WLA-800 smart low-level alarm system
The WLA-800 is an advanced chemical level monitoring device that alerts staff immediately with a buzzer or flashing light when chemicals are running low, ensuring uninterrupted workflow and improving efficiency and safety.
- Audio-visual warning system alerts low level and low battery in time to prevent unexpected failures
- Compatible with multi-band wireless mode, supports monitoring of up to 8 probes simultaneously for diverse applications
- Acid- and alkali-resistant casing and piping design ensures long-term stability
- Optional sensors available for remote monitoring of chemical usage
XLG-20 corrosion-resistant suction lance
The XLG-20 series corrosion-resistant suction lance is specially designed for chemical suction, featuring a built-in corrosion-resistant check valve and impurity filter to effectively prevent backflow and leakage, ensuring stable operation. Suitable for various conditions, it offers excellent corrosion resistance and safety.
-
Suction lance equipped with dedicated corrosion-resistant check valve and filter to prevent backflow and impurity intake
-
Made of highly corrosion-resistant materials, ensuring long-term stability and durability
-
Excellent airtightness, eliminating suction errors caused by leakage
XHH-50 series smart wide-voltage signal box
As the signal receiver for standard single-washer dispenser systems, the XHH-50 series signal box supports wide voltage input, seamlessly compatible with almost all washer control boards without the need to replace relays. It also features built-in short-circuit protection, ensuring long-term operational stability.
-
Supports DC/AC wide-voltage washer signal input, no need for relay replacement
-
Single Ethernet cable directly connects washer and dispenser, highly efficient installation
-
Built-in short-circuit protection ensures user safety
PFXZQ-120 series HD color formula selector
The formula selector allows users to manually choose washing programs via touchscreen or buttons. Unlike traditional systems, SPLANEY’s dispenser system can automatically match programming with standard single washers, giving users the option to use the formula selector freely.
-
Users can freely decide whether to use the formula selector
-
Manual chemical addition can be set via click to optimize washing results
-
Available in color LCD touchscreen and digital display versions
-
Formula information and washer number can be preset
